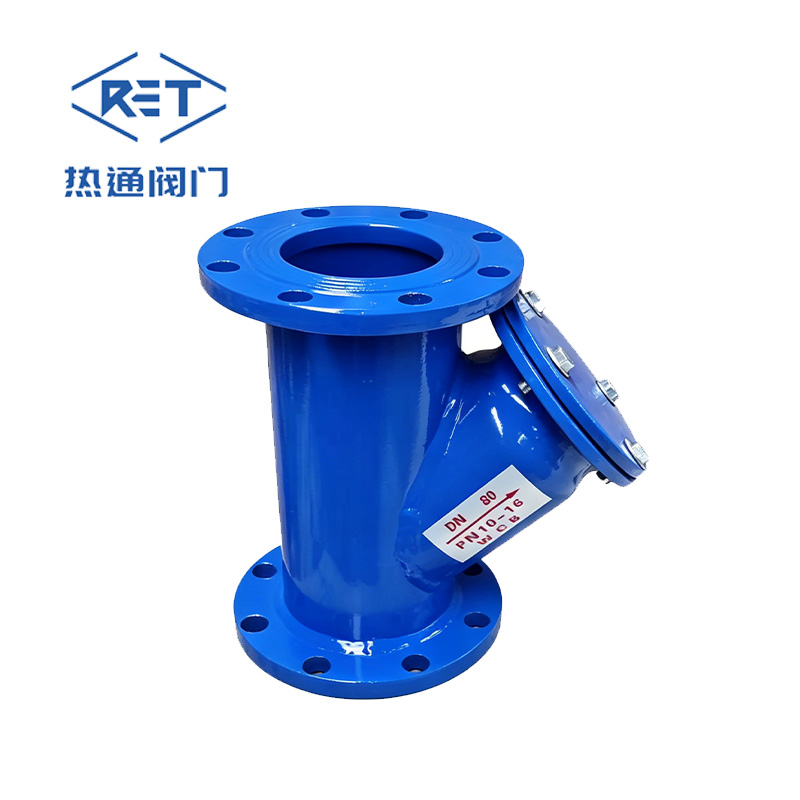

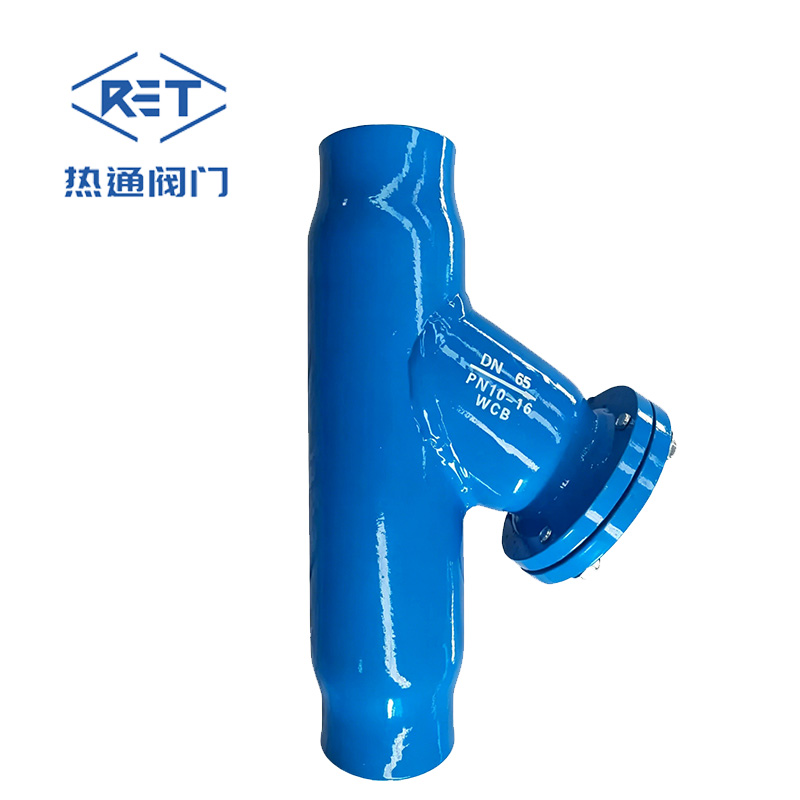

Fully Welded Y-Type Strainer DN40-DN600
Model: GL41H-16~64
Nominal Size Range: DN40~DN600
Applicable Media: Hot water, steam, natural gas, and other fluids
Application Fields: Water supply & drainage systems, district heating, power plants, chemical industry, metallurgy
Description
Technical Features
- Compact Y-Type Structure: Angled Y-design with small installation footprint, easy installation, and good compatibility with pipeline elbows and upstream valve sections.
- Low Flow Resistance: Large filtration area ensures low pressure loss and does not significantly affect overall pipeline flow capacity.
- Easy Maintenance: Equipped with a bottom drain plug for quick cleaning and removal of the filter screen without dismantling the pipeline system.
- Multiple Material Options: Valve body available in ductile iron, WCB carbon steel, and 304/316L stainless steel to suit different operating conditions. All filter screens are made of stainless steel, offering excellent corrosion resistance and high strength.
- Customizable Filtration Accuracy: Mesh sizes from 10 to 480 mesh available, suitable for coarse filtration and fine filtration requirements.
- Wide Temperature Range: Carbon steel suitable for -30°C to 380°C; stainless steel suitable for -80°C to 450°C, ideal for steam systems and low-temperature applications.
