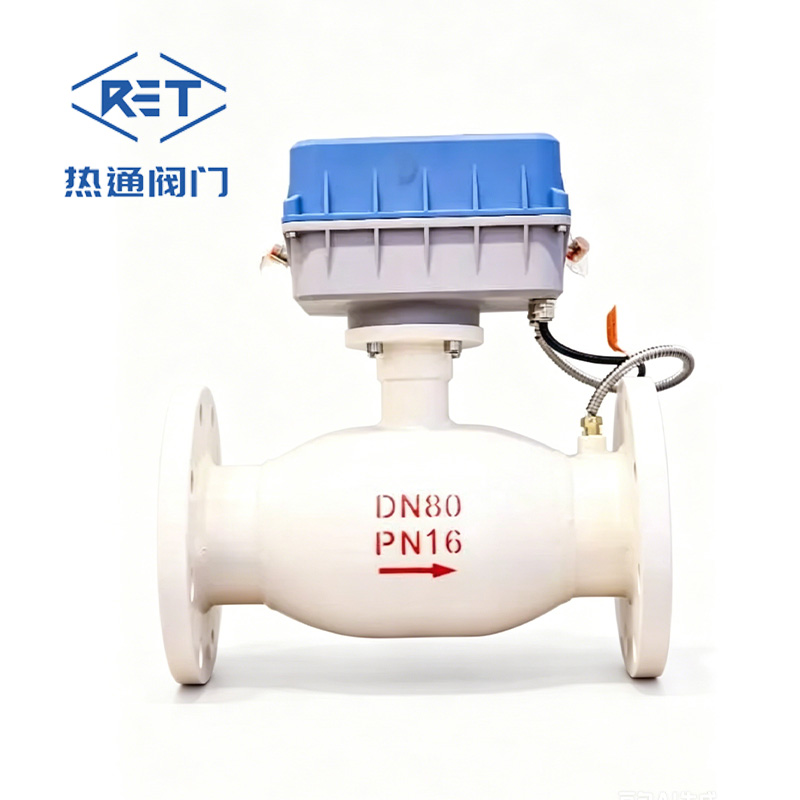

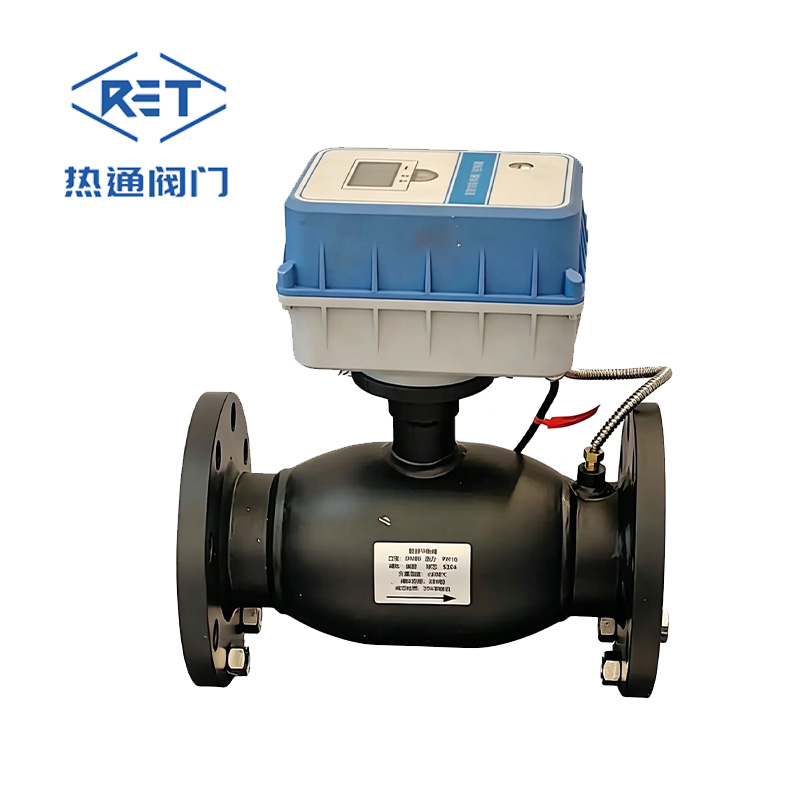

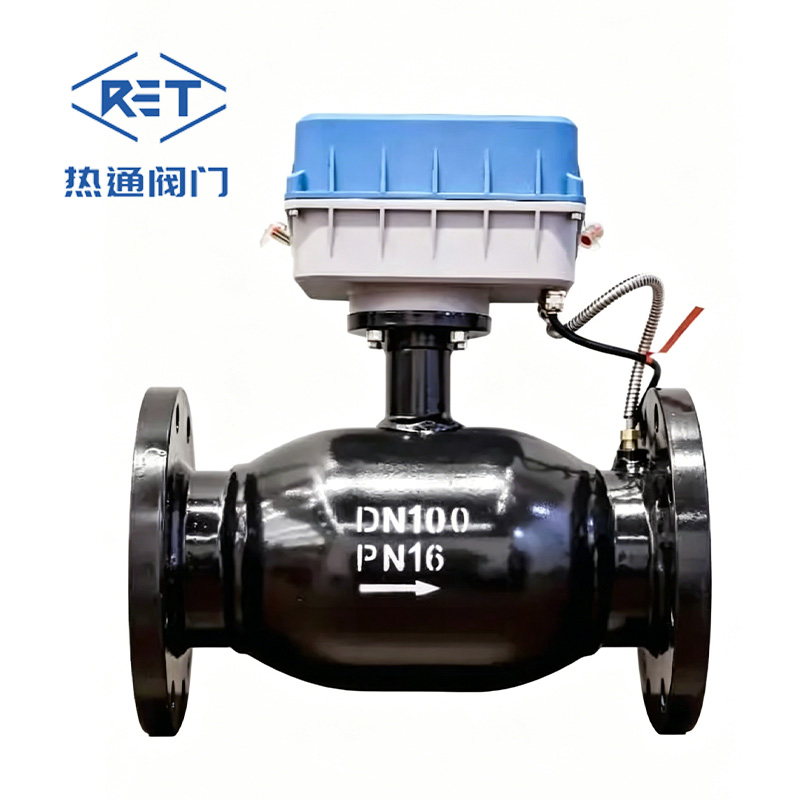

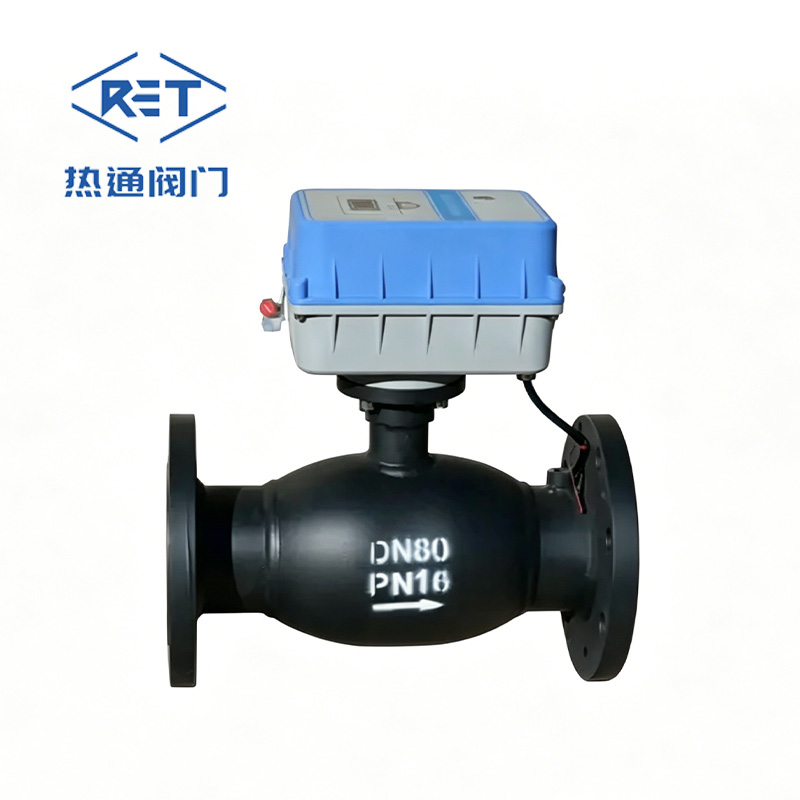

“W” Type IoT Intelligent Balancing Valve
Control Modes:
- Balance mode
- Time-sharing mode (daily and weekly scheduling control)
- Holiday mode
- Temperature control mode
Power Supply Options:
- Long-life lithium thionyl chloride battery
- Rechargeable lithium battery
- DC power supply (12V DC)
Communication Protocols:
- NB-IoT
- RS485
Connection Types:
- Flanged connection
- Welded end connection
- Threaded connection
Technical Features
The “W” type IoT balancing valve is a high-end fully automatic intelligent balancing valve integrating data acquisition, control, and signal transmission. It is designed with an internal control unit, computing unit, data acquisition unit, actuator unit, and communication module (multiple communication protocols available).
By simply setting key operating parameters—such as return water temperature, supply-return temperature difference, supply-return pressure differential, or valve opening—the valve can automatically perform real-time monitoring and precise control, significantly reducing labor costs while ensuring highly accurate system regulation.
Connection options include flanged connection, welded end connection, and threaded connection, providing flexible installation for different pipeline systems.
The W-type balancing valve is specifically designed to regulate hydraulic balance across entire HVAC systems and branch pipelines. It is a key device for solving water system imbalance in heating and air conditioning applications. Its uniquely designed “W-shaped spherical flow passage” ensures excellent controllability across the full opening range, enabling equal-percentage flow regulation and stable system performance.
